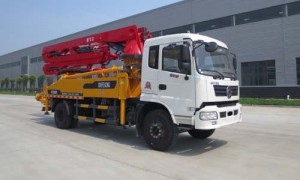

Concrete Pump Truck
Concrete pump truck is most widely used on construction sites, SYMMEN boom pump for sale have earned a good reputation for the high quality and safety in China.The concrete pump truck is a machine used for transferring liquid concrete by pumping.It is a concrete pump attached to a truck and known as a boom concrete pump, because it uses a remote-controlled articulating robotic arm (called a boom) to place concrete accurately. Boom pumps are used on most of the larger construction projects as they are capable of pumping at very high volumes and because of the labour saving nature of the placing boom.A concrete pump truck is a self-propelled diesel-powered vehicle that comprises a lengthy boom to aid in reaching high or hard-to-reach areas.
Feature and Parameter of Concrete Pump Truck
- Chassis and dynamical system: The concrete pump truck is equipped with Shiyan Dongfeng truck chassis, which has strong carry capacity, good dynamic performance and low fuel consumption. It could matches with separate power or chassis power, achieving fuel economy, energy consumption reduction and easy maintenance.
- Pumping hydraulic system: The operation of concrete pump truck becomes more simple and reliable through full hydraulic control system and hydraulic transfer signal. Improve swing cylinder commutation speed and reduce commutation impact. Meanwhile, large cylinder commutates with accelerating action. It can enrich the concrete cylinder, making the material ejection continuously and evenly,
- Boom and outrigger hydraulic system: Boom applies with load-sensitive proportional control system. It makes the boom running freely with excellent operating performance. Not only can achieve infinitely variable speed remote control, you can achieve emergency manual operation in critical situation. Oil circuit changes directly between boom and outrigger system, avoiding mistake operation in order to ensure the safety construction of the concrete pump truck.
- Boom: Through finite element analysis, dynamic analysis and experiment, the material is made of high strength low alloy steel plate on the basis of accurate data support. All materials and welds through 100% non-destructive testing, ensure the concrete pump truck rational boom structure and high reliability.
- Electronic control system: Concise and reliability of concrete pump truck electric control system applies Schneider as its major electrical appliances. It equips with two operate devices: disk and wireless remote control. You can choose Howard HBC wireless remote control, which is designed in line with principles of human engineering, good appearance, easy operation and flexibility.
- Lubrication system: Lubrication system uses automatic multi-point lubrication technology, one-to-one lubrication. It extends the service life of wearing parts effectively.
| Item | Unit | Value | |
|---|---|---|---|
| Pumping system | Max. theoretical output | m³/h | 40 |
| Concrete pumping pressure | MPa | 8 | |
| Max. diameter of pumping concrete aggregate | Mm | 40 | |
| Concrete slump | Cm | 14-23 | |
| Concrete cylinder diameter | Mm | 160/180 | |
| Piston stroke | Mm | 1000/1200 | |
| Max. pumping times | Times/min | 26/13 | |
| Pumping hydraulic system pressure rating | Mpa | 28 | |
| Hopper capacity | L | 500 | |
| Swing valve type | Mm | S tube valve | |
| Inner diameter of delivery tube | Mm | 125 | |
| Placing boom system | Placing boom type | Rolled type | |
| Placing boom number | 3 | ||
| Slewing angle range | 。 | 90/180/240 | |
| Pumping vertical height | M | 22 | |
| Slewing radius | M | 18 | |
| Rotation angle | 。 | 360 | |
| Hydraulic system pressure | Mpa | 30 | |
| Chassis system | Wheelbase | Mm | 4700 |
| Tread | Mm | 1800 | |
| Max.travelling speed | Km/h | 80 | |
| Engine | Engine Model | 4105/4110 | |
| Max. output power | KW | 103 | |
| Overall weight | KG | 13000 | |
| Overall dimension | (Length×Width×Height) | mm | 9400x2200x3200 |
